SAT Fanfare | Messungen / measurements feedback plan | |||||||||||||||||||
. | ||||||||||||||||||||

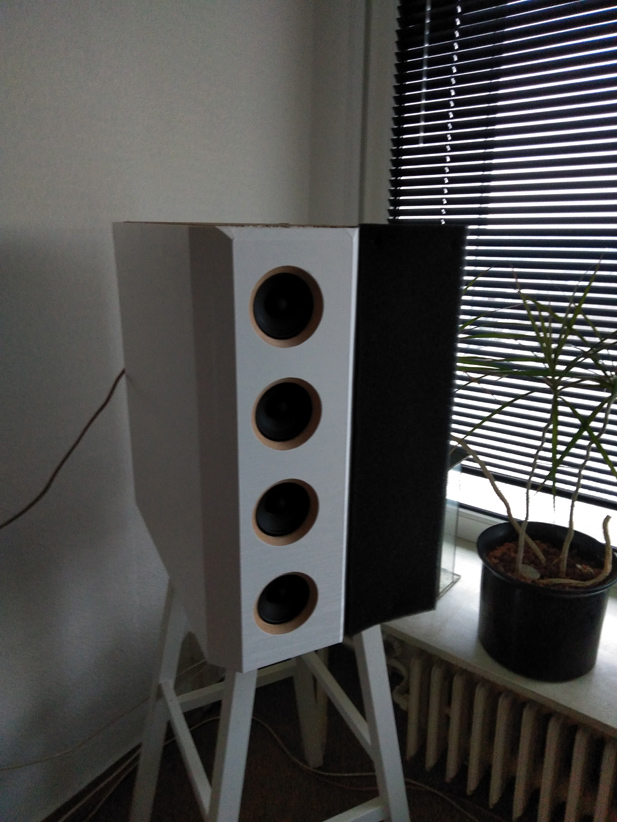

Weltneuheit tripel Horn für 4 x 8 cm Breitbänder hier: Faital PRO 3FE25 16 Ohm | world novelty tripel horn for 4 x 3" fullrange driver here: Faital PRO 3FE25 16 Ohm | |||||||||||||||||||
Ich bin begeistert, toller Klang, Schalldruck, Dynamik, ermüdungsfrei und das bei einem Preis für 8 Treiber mit Holz in HH 2020 ~250 Euro ! I am enthusiastic, great sound, sound pressure, dynamics, fatigue-free and that at a price for 8 drivers with wood in HH 2020 ~ 250 euros ! | ||||||||||||||||||||
- starke vertikale Bündelung - 2,3 gr Masse - im Horn RMS 0,29 - breite horizontale HT Abstrahlung, horizontale TMT ist limitiert durch die Bündelung der drei Hörner. Da muss sich jeder single 20 cm BB warm anziehen ;-) Every 8" FR has to dress warmly ;-) - strong vertical bundling - 2.3 gr mass - RMS 0.29 in the horn - wide horizontal HT radiation, horizontal limited by the low mid bundling of the three horns. | ||||||||||||||||||||
In der Konstruktion berücksichtigt blieb der erwartete zu laute MT aus, siehe Simulationen, ursächlich scheint die rechtwinklige Anordnung der Weichfaser im Hornmund der kleinen Hörner oben und unten zu sein. Hier wäre mein Ansatz für die Korrektur des Frequenzgangs der ganzen Box, damit die mittleren Treiber ohne Einfluss spielen können. Einsatzbereich ab ~80 Hz, sehr gute Impedanz auch passiv zu beherrschen, für HiFi bis 100 dB ist aufgrund des geringen Hubes im Bass auch 6 dB möglich. Reine Sprachübertragung ist im fullrange Betrieb möglich. In der Praxis, ist für HiFi ein Kondensatorpaket von 410 µF ausreichend. The expected too loud MT was not taken into account in the construction, see Simulations, the reason seems to be the right-angled arrangement of the soft fibers in the horn mouth of the little horns. Here would be my approach for the correction of the frequency response of the whole box so that the middle drivers can play without influence. Application range from ~ 80 Hz, very good impedance can also be controlled passively, For HiFi up to 100 dB, 6 dB is also possible due to the small bass stroke. Pure voice transmission is possible in full-range operation. In practice, a capacitor package of 410 µF is sufficient for HiFi. Kombiniert mit der Sub-Fanfare, aufgrund der Horn Bündelung, sicher ein Weg in schweriger Umgebung am leisesten Laut zu Hören. Combined with the sub-fanfare, due to the horn bundling, definitely a way to hear loud in the quietest way. | ||||||||||||||||||||

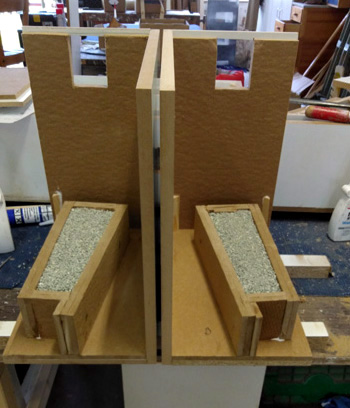

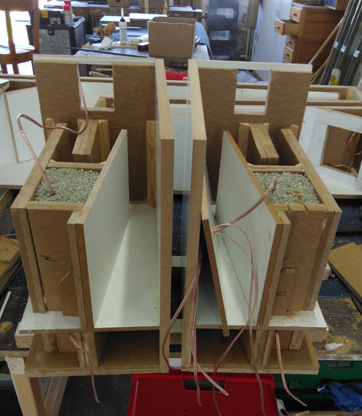

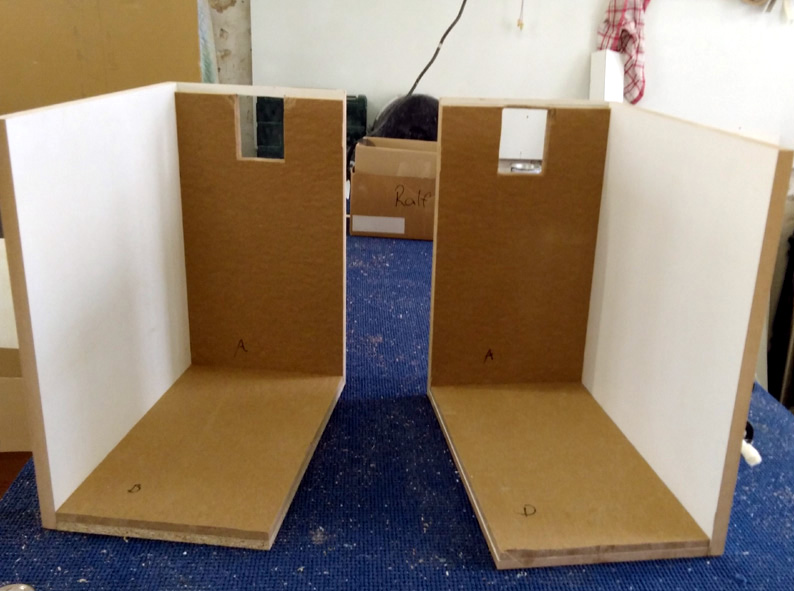

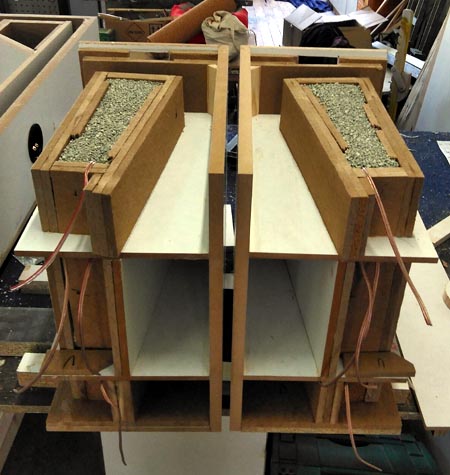

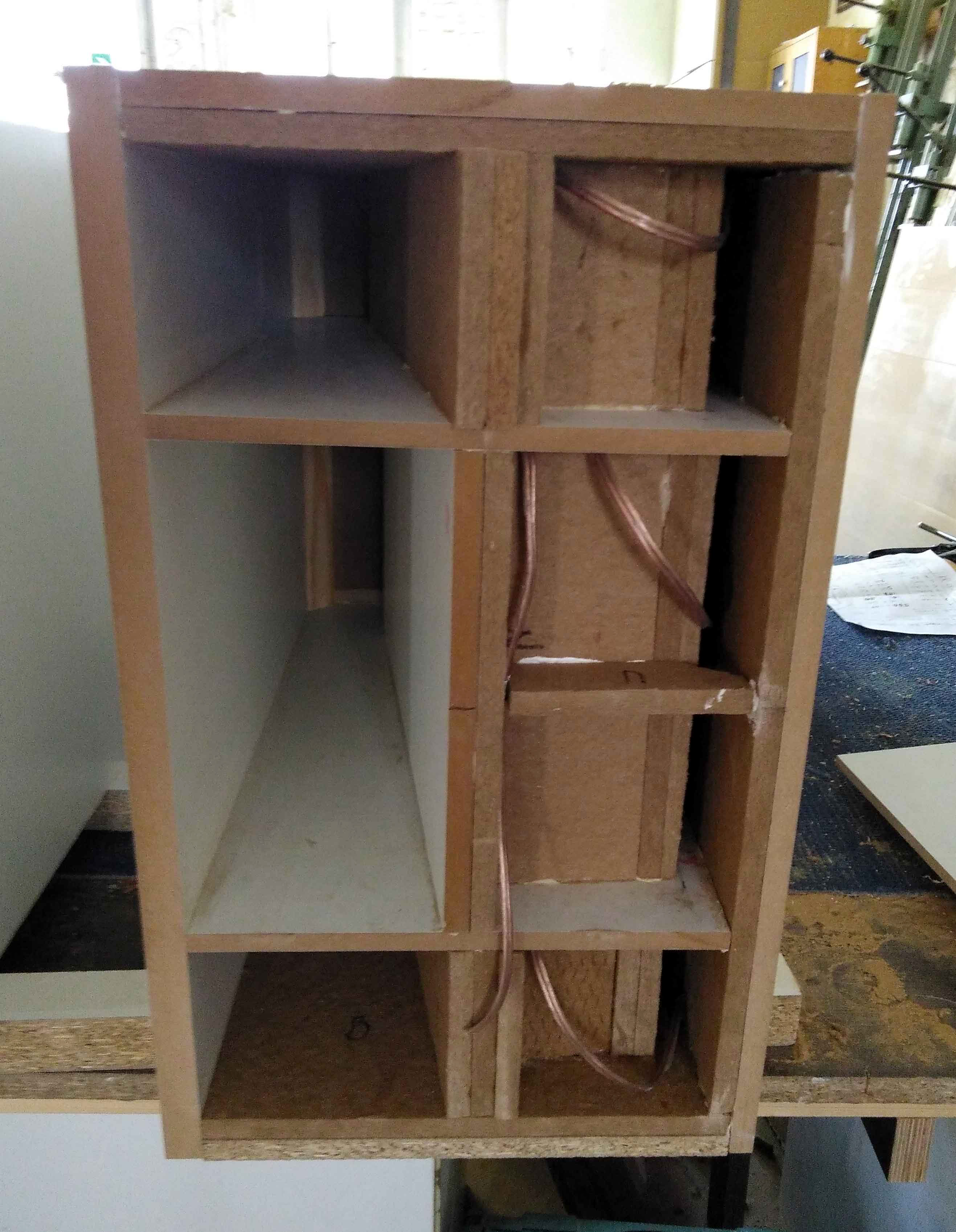

Sieht schwieriger aus als es ist, beim Aufbau sieht man nur die Schicht die man baut. | Looks harder than it is you can see in the construction just the layer you build. | |||||||||||||||||||
copyright Horst Möller 2020 | ||||||||||||||||||||
